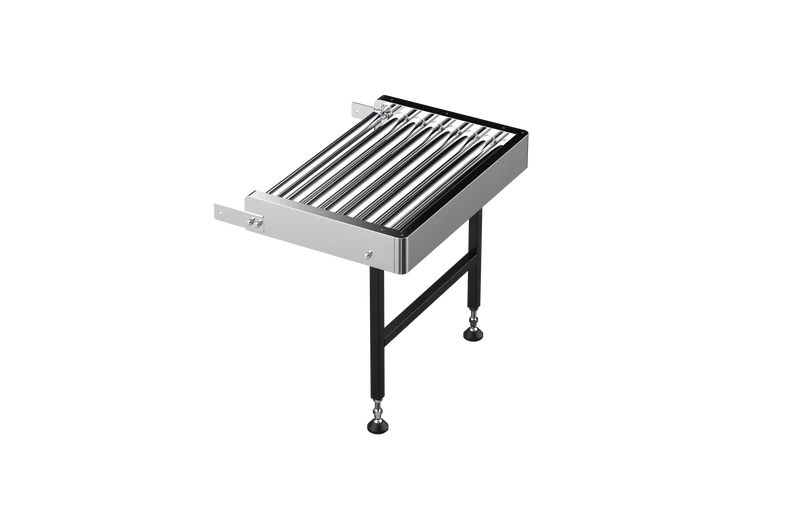

DAHUA DH-ISC-M65-EC05 Extension Roller Table, 0.5m

86.636,03 €52.360,29 €In offerta
Quantità

Descrizione

ISC-M65-EC05

Extension Roller Table, 0.5m

> Removable safety roller.
> Stainless steel roller.
> Supports cascade connection between extension conveyors.
> High-strength frame, maximum load is 200 kg.
> Supports installation at the entrance or exit of the security screening machine.

General parameters

Max. Load

200 kg (440.92 lb), evenly distributed

Roller Table Length

500 mm (19.69")

Regular Parameters

Roller Material

Stainless steel

Roller Diameter

50 mm (1.97")

Load of Single Roller

70 kg (154.32 lb)

Roller Distance

55 mm (2.16")

Conveyor Height

660 mm–780 mm (25.98"–30.71")

Operating Temperature

0 °C to 45 °C (32 °F to 113 °F)

Operating Humidity

<95% (RH), non-condensing

Product Dimensions

500 mm × 727 mm × 688 mm (19.69" × 28.62" × 27.09")

Packaging Dimensions

780 mm × 1050 mm × 450 mm (30.71" × 41.34" × 17.72")

Net Weight

30 kg (66.14 lb)

Gross Weight

55 kg (121.25 lb)

Installation

Ground mount
